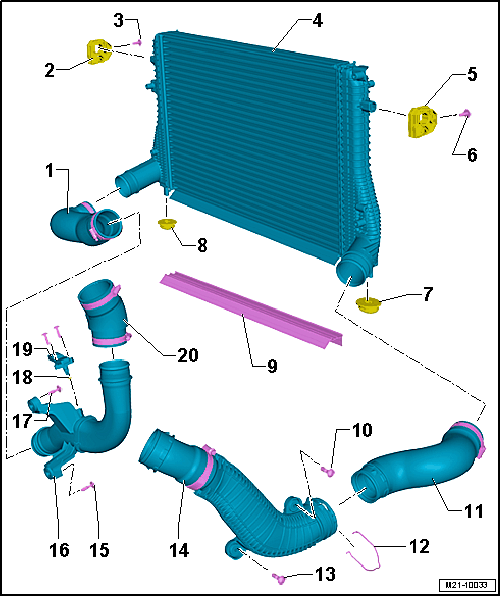

Overview - Charge Air System: Notes
WARNING: This page is about a different variant/trim than selected.
- Air Duct Hose
- Installing. Refer to Air Hose Clamp Sizes Identification .
- Rubber Bushing
- For the charge air cooler
- Left
- Bolt
- 8 Nm
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Rubber Bushing
- For the charge air cooler
- Right
- Bolt
- 8 Nm
- Rubber Bushing
- For lower charge air cooler in body
- Right
- Rubber Bushing
- For lower charge air cooler in body
- Left
- Gasket
- Replace if damaged
- Bolt
- 7 Nm
- Air Duct Hose
- Installing. Refer to Air Hose Clamp Sizes Identification .
- Spring Clip
- Check for proper seating
- Bolt
- 7 Nm
- Air Duct Pipe
- Bolt
- 7 Nm
- Air Duct Pipe
- Bolt
- 7 Nm
- O-ring
- Is a component of the Charge Air Pressure Sensor - G31-
- Charge Air Pressure Sensor -G31-
- Replace the Charge Air Pressure Sensor -G31- after removal
- Removing and installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Air Duct Hose
- Installing. Refer to Air Hose Clamp Sizes Identification .
