Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

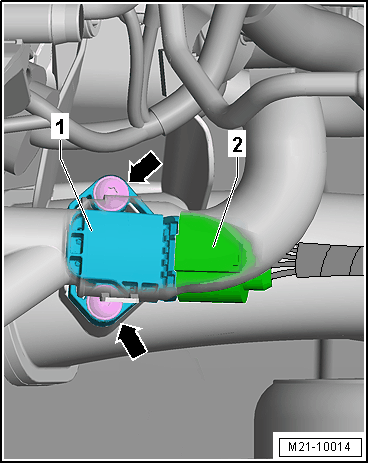

-- Disconnect the connector -2-.

GWWM21-10014Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and pull the Charge Air Pressure Sensor -G31- -1- out of the air duct pipe and remove it upward.

NOTE:

The bolts are each accessible in front of and behind the coolant hose from above.
