Charge Air Cooler, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the radiator. Refer to RADIATOR, REMOVING AND INSTALLING .

-- Loosen the hose clamp -3 and 5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Charge Air Pressure Sensor -G31- -arrow-.

-- Remove the bolts -1 and 4- and then remove the air duct pipe downward.

-- Seal the open lines and connections with clean plugs from the :VAS6122 .

-- Remove the bumper cover. Refer to FRONT BUMPER .

-- Remove the charge air cooler bracket bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With A/C System

NOTE:

The condenser bolts are difficult to access. Lift the charge air cooler out of the lower cooler mounts with a second technician. Now the charge air cooler can be moved >>back and forth<< and the bolts are accessible.

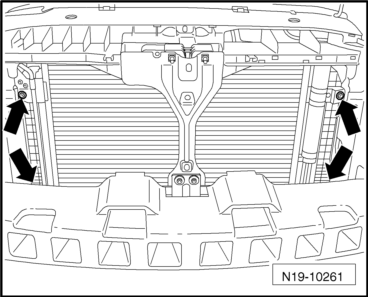

-- Remove the condenser from the charge air cooler -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the condenser and the cable tie to the lock carrier.

Continuation For All Vehicles

-- Remove the charge air cooler downward.
