Camshaft Position Sensor, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

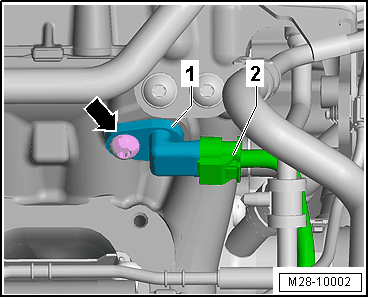

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- and camshaft position sensor -1-.
