Camshaft, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.
NOTE:

The sealing surfaces of the lower cylinder head cover and on the upper cylinder head must not be reworked.

The camshaft bearings are integrated in the cylinder head or cylinder head cover. Before removing the cylinder head cover, release the tension on the camshaft timing chain.

When installing, secure all cable ties back to same positions.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the upper coolant pipe. Refer to UPPER COOLANT PIPES, REMOVING AND INSTALLING .

-- Remove the ignition coils. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Free up the connector from the clip -4- and pivot it forward.

GWWA19-11613Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers in direction of -arrow-, remove the wiring duct upward from the bracket and move it towards the front.

-- Remove bolts -1, 2 and 3-. Carefully swing coolant line backward slightly.

NOTE:

Risk of destroying the coolant pipes through deformation.

Never change the coolant pipe bend shape.

-- Disconnect the connector -1- from the EVAP Canister Purge Regulator Valve 1 -N80-.

-- Press the release button on the crankcase ventilation hose -2- and remove the hose.

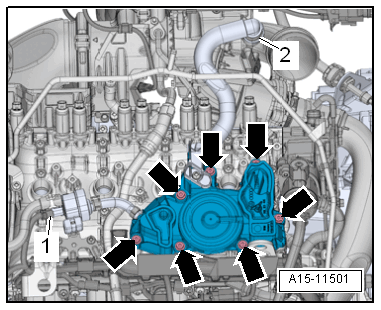

-- Remove the bolts -arrows- and the crankcase ventilation.

GWWA15-11501Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Remove the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Remove the engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the right wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the engine support. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

NOTE:

To prevent damage from escaping coolant on the oil pressure switch, cover with a cloth.

-- Rotate the vibration damper using the :T10355  into the "TDC" position.

GWWA15-11449Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the control valve in the direction of using the :T10352/2  .

GWWA15-10443Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The control valve has left-hand thread.

-- Remove the bolts -arrows- and remove the bearing bracket.

GWWA15-10444Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

GWWA15-11390Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the :T40243  -arrows-.

-- Press the chain tensioner circlip -1- together and hold it.

-- Slowly press and hold the :T40243  in the direction of -arrow-.

GWWA15-11391Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the chain tensioner with the :T40267  .

GWWA15-11392Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the :T40243  .

-- Bolt the :T40271/2  to the cylinder head and slide into the splines on the chain sprocket in the direction of the -arrow 2-. Rotate the intake camshaft with the :T40266  -1- if necessary.

GWWA15-11383Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the :T40271/1  on the cylinder head.

A second technician is needed for the following step.

-- Hold the exhaust camshaft securely with the :T10172A  in direction of the -arrow A-. Remove the bolt -1- and guide the tensioning rail -2- downward. Turn the camshaft clockwise -A- until the :T40271/1  can be slid, in the direction of the -arrow B-, into the chain sprocket splines -C-

-- Check the installation position -C- of the :T40271/1  .

GWWM15-10027Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the guide rail -1-. To do so, release the retainer -arrow- with a screwdriver and push the guide rail off toward the front.

GWWM15-10034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the oil pump chain tensioner bracket in direction of -arrow- and lock with :T40011  .

GWWA15-11243Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and remove the chain tensioner.

-- Remove the bolts -1- and remove the glide rail -2-.

GWWM15-10028Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the camshaft timing chain from the camshaft bearing and guide downward.

-- Install the :T10531/3  . In the "TDC point" the flat area -1- points upward. Install the :T10531/4  . Turn the crankshaft with a 32 mm open end wrench counter-clockwise out of "TDC".

GWWN15-10976Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the intake camshaft in the direction of the -arrow 1- using the :T40266  . Slide the :T40271/2  out of the chain sprocket splines in direction of -arrow 2- and bring the camshaft into the rest position.

GWWA15-11387Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

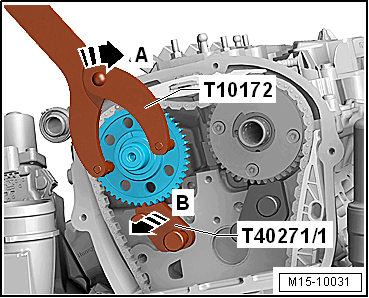

-- Turn the exhaust camshaft using the :T10172A  in direction of the -arrow A-. Slide the :T40271/1  out of the chain sprocket splines in the direction of the -arrow B- and bring the camshaft into the rest position.

GWWM15-10031Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cylinder head cover bolts in -1 to 6- sequence.

GWWA15-11493Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cylinder head cover.

-- Remove the camshaft and cover the open engine components.
