Vibration Damper Sealing Ring, Replacing: Removing

WARNING: This page is about a different variant/trim than selected.

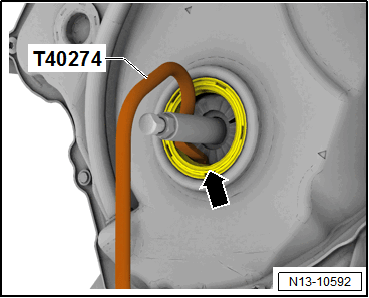

GWWN13-10592Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

-- Remove the seal -arrow- with the :T40274  .
