Upper Timing Chain Cover, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The engine is cold.

-- Briefly open the coolant reservoir cap -arrow- to reduce the residual pressure in the coolant system.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1-, remove the coolant hose and push to the right side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the release button on the EVAP canister hose -2-, remove the hose and free it up.

-- Remove the Camshaft Adjustment Valve 1 -N205-. Refer to Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

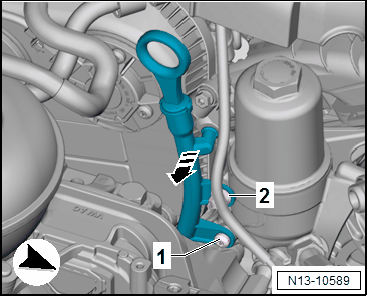

-- Unclip the oil dipstick tube from the timing chain upper cover in direction of -arrow-.

-- Unclip the wiring harness for the camshaft adjustment valves and free up.

-- Remove the bolts -1 through 6- and the upper cover for the timing chain.
