Upper Timing Chain Cover, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

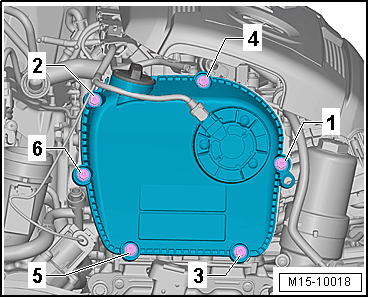

-- Install the upper timing chain cover. Refer to Figure for the tightening sequence.

-- Install the Camshaft Adjustment Valve 1 -N205-. Refer to Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
