Overview - Timing Chain Cover

WARNING: This page is about a different variant/trim than selected.

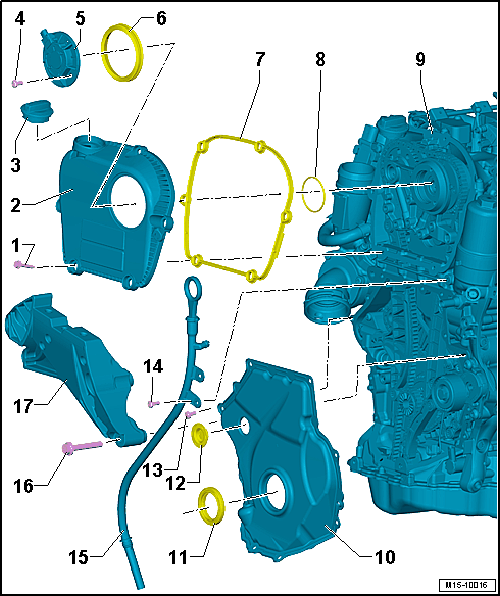

Fig 1: Exploded View Of Timing Chain Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- Tightening sequence. Refer to Fig 2
Upper Timing Chain Cover
- Removing and installing. Refer to Fig 2.
Cap
Bolt
- 4 Nm 45°
- Replace after removing
Camshaft Adjustment Valve 1 -N205-
- Removing and installing. Refer to Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING .
Seal
- Replace after removing
Seal
- Replace if damaged
O-ring
- Replace after removing
- Coat with oil before assembly
Engine
Lower Timing Chain Cover
- Replacing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
- With shaft seal
- Dependent on the sealing compound sealant, bends the cover when removing. For this reason the cover must always be replaced after removing.
Shaft Seal
- Replacing. Refer to VIBRATION DAMPER SEALING RING, REPLACING .
- For the vibration damper
Plugs
- Replace after removing
Bolt
- Tightening sequence eight bolts. Refer to Fig 3
- Tightening sequence 15 bolts. Refer to Fig 4
- Replace after removing
Bolt
- 9 Nm
Oil Dipstick Tube
Bolt
- Engine support to engine -item 1) OVERVIEW - SUBFRAME MOUNT -.
Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

Fig 2: Timing Chain Cover Tightening Sequence (1 of 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 through 6- in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 through 6-	Install by hand all the way
2.	-1 through 6-	9 Nm

Fig 3: Timing Chain Cover Tightening Sequence (2 of 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 through 8- in three stages in the sequence shown:

Step	Bolts	Steel Bolts	Aluminum Bolts
1.	-1 through 8-	8 Nm	4 Nm
2.	-2 to 3 and 5 to 8-	45° additional turn	45° additional turn
3.	-1 and 4-	After installing the vibration damper tighten with an additional turn.	After installing the vibration damper tighten with an additional turn.

Fig 4: Timing Chain Cover Tightening Sequence (3 of 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 through 15- in three stages in the sequence shown:

Step	Bolts	Steel Bolts	Aluminum Bolts
1.	-1 through 15-	8 Nm	4 Nm
2.	-1, 2, 4, 5 and 7 to 15-	45° additional turn	45° additional turn
3.	-3 and 6-	After installing the vibration damper tighten with an additional turn.	After installing the vibration damper tighten with an additional turn.
