Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Puller - Valve Seal :3364
• Seal Installer - Valve Stem :3365
• Valve Cotter Tool Kit :VAS5161A
• Valve Cotter Tool Kit - Guide Plate 19B :VAS5161/19B
• Engine and Gearbox Bracket VAS6095A :VAS6095A
• Cylinder Head Tensioning Device :VAS6419

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Spark Plug Removal Tool :3122B
• Puller - Valve Seal :3364
• Seal Installer - Valve Stem :3365
• Valve Cotter Tool Kit - Adapter :T40012
• Torque Wrench 1331 5-50Nm :VAG1331
• Valve Keeper Tool Kit :VAS5161A
• Valve Cotter Tool Kit - Guide Plate 19B :VAS5161/19B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Assembly Tool :T10352/2
• Counterhold - Vibration Damper :T10355
• Locking Pin (3 pc.) :T40011
• Chain Tensioner Lever :T40243
• Tensioner Locking Tool :T40267
• Camshaft Locks :T40271

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Central Valve Assembly Tool :T10352
• Counterhold - Vibration Damper :T10355
• Chain Tensioner Lever :T40243
• Tensioner Locking Tool :T40267
• Camshaft Locks :T40271
• Adapter :T40266

Special Tools And Workshop Equipment Required

• Dial Gauge Adapter :T10170A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Counterhold - Multiple Use :T10172A  with Counterhold - Kit - Adapter 2 :T10172/9

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Crankshaft :T10354

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

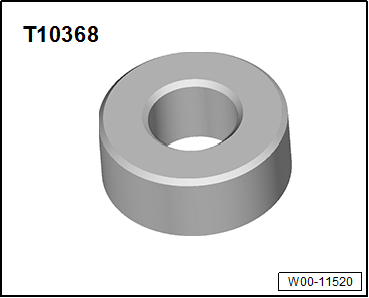

• Press Piece - Timing Chain Cover :T10368

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Gearbox :T10375

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Socket T30 :T10405

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Vibration Damper Assembly Tool :T10531

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Adapter :T40266

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Crankshaft :T40274

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Compression Tester Kit - Adapter 5A :VAG1381/5A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Compression Tester Kit :VAG1763

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dial Gauge - 0-10mm :VAS6079

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine Bung Set :VAS6122

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dial Gauge Set :VAS6341

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Hose Clip Pliers :VAS6362

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dial Gauge Holder :VW387

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Spark Plug Removal Tool :3122B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
