Bearing Bracket Tightening Specifications And Sequence

WARNING: This page is about a different variant/trim than selected.

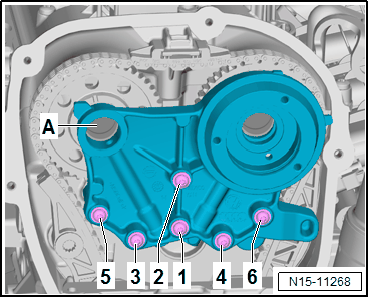

GWWN15-11268Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If an adapter sleeve is installed, it will be moved with the bolt -1- in the cylinder head.

-- Tighten the bolts in the steps shown in the sequence:

Bearing Bracket with Adapter Sleeve and Steel Bolts

Step Bolt Tightening Specification/Additional Turn for Steel Bolts
1. -1- 3 Nm
2. -1 to 6- 9 Nm
