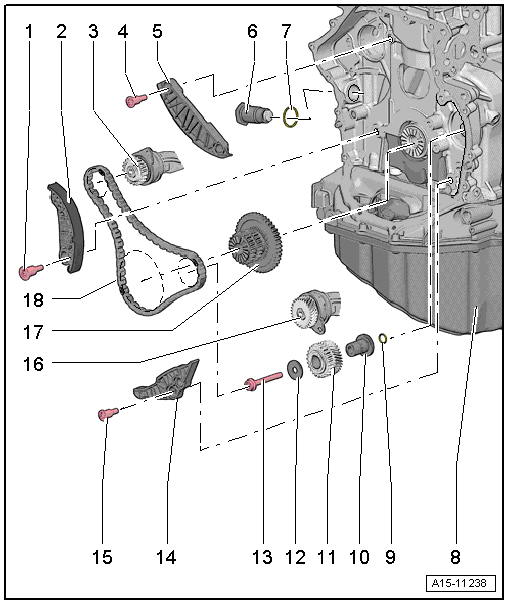

Overview - Balance Shaft Drive Chain: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
After performing work on the chain drive the adaptation value in the engine control module must be adapted. To do so, turn on the ignition and select the following menu items on the Vehicle Diagnostic Tester:
01 - Engine Electronics
Guided Functions
01 - Adaptation After Repair Work On The Chain Drive
- Guide Pin
- 20 Nm
- Tensioning Rail
- For the timing chain
- Balance Shaft
- Must be replaced after removing
- Exhaust side
- Lubricate the bearing with engine oil
- Replacing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING, EXHAUST SIDE .
- Guide Pin
- 20 Nm
- Guide Rail
- For the timing chain
- Chain Tensioner
- 85 Nm
- Insert with locking compound.
- Seal
- Cylinder Block
- O-ring
- Lubricate with engine oil
- Mounting Pin
- Lubricate with engine oil
- Installation position. Refer to Bearing/Mounting Pin .
- Intermediate Sprocket
- The intermediate sprocket must be replaced if the bolt -item ) OVERVIEW - BALANCE SHAFT DRIVE CHAIN- is loosened.
- Washer
- Bolt
- Replace after removing
- The intermediate sprocket -item ) OVERVIEW - BALANCE SHAFT DRIVE CHAIN- must be replaced if the bolt is loosened.
- Tightening sequence. Refer to Tightening Specifications .
- Guide Rail
- For balance shaft timing chain
- Guide Pin
- 20 Nm
- Balance Shaft
- Must be replaced after removing
- Intake side
- Lubricate the bearing with engine oil
- Replacing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING, INTAKE SIDE .
- Three Stage Chain Sprocket
- Installation position. Refer to Three Stage Chain Sprocket Markings .
- Balance Shaft Drive Chain
- Removing. Refer to BALANCE SHAFT DRIVE CHAIN, REMOVING AND INSTALLING .
