Camshaft Timing Chain, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.
GWWN15-10907Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the crankshaft at TDC. The flat area on the crankshaft -arrow- must be horizontal.

-- Draw the markings on the cylinder block -1-, as shown, with a waterproof marker.

-- Draw a marking -2- on the three stage chain sprocket tooth -1- with a waterproof marker.

GWWA15-11270Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the intermediate sprocket and balance shaft to the marks -arrow-, but do not loosen the bolt -1-.

GWWA15-10464Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The painted links of the drive chain must be positioned on the markings on the chain sprockets.

GWWN15-10945Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ignore the position of any additional painted chain links that may also be present.

-- Lay the balance shaft drive chain, the painted links -arrows- must be positioned with the markings on the chain sprockets.

-- Install the guide rail -1- and tighten the bolts -arrows-.

GWWN15-10948Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

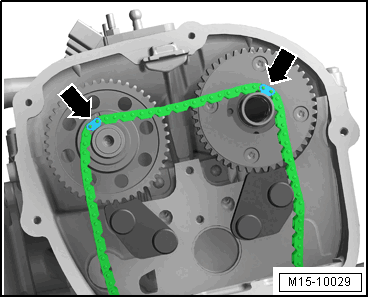

-- Hook the camshaft timing chain with the marks -arrows- onto the camshaft pins.

GWWM15-10029Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lay the oil pump drive timing chain onto the three stage chain sprocket.

-- Tilt the three stage chain sprocket in the direction of the -arrow- toward the engine and secure it to the crankshaft. The marks -arrows- must be positioned opposite each other.

GWWA15-11274Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the :T10531/2  in the crankshaft and tighten hand-tight.

GWWN15-10961Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the :T10531/3  . Tighten the :T10531/4  hand-tight. Using a 32 mm open end wrench move the :T10531/3  back and forth slightly while doing this tighten the :T10531/4  until the chain sprocket is seated securely on the crankshaft splines. Now tighten the adjusting bolt -C-.

-- Position the painted chain link in the balance shaft drive chain -arrow- at the mark on the three stage chain sprocket. Install the tensioning rail -1- and the glide rail -2-. Tighten the bolts -3-.

GWWN15-10949Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the chain tensioner -1-.

GWWN15-10950Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the adjustment again. The painted chain links -arrows- must line up with the markings on the chain sprockets.

GWWN15-10951Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

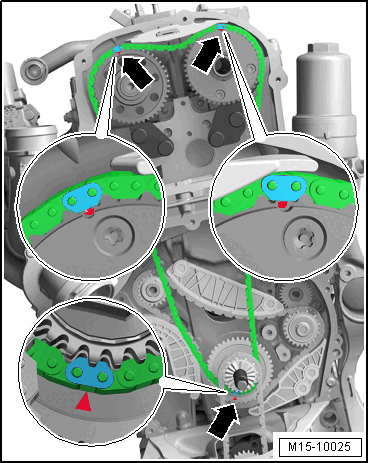

-- Place the camshaft timing chain on the intake camshaft, exhaust camshaft and the crankshaft. Position the painted chain links -arrows- on the markings on the chain sprockets.

GWWM15-10025Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

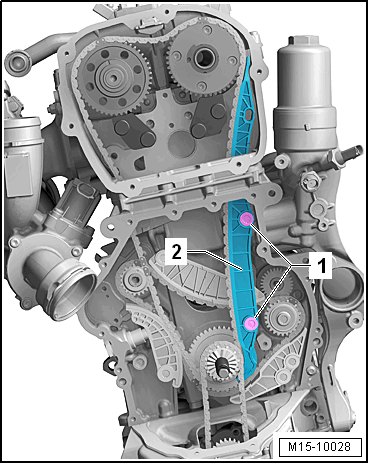

-- Install the guide rail -2- and tighten the bolts -1-.

GWWM15-10028Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

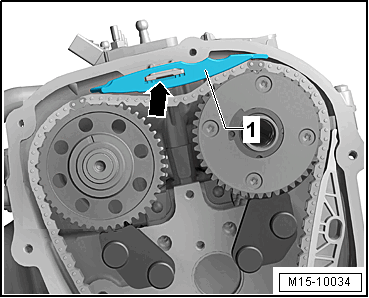

-- Install the upper glide rail -arrow-.

GWWM15-10034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A second technician is necessary for the following step.

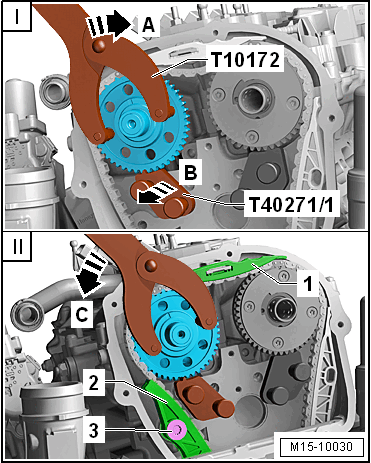

-- Turn the exhaust camshaft slightly in the direction of the -arrow A- using the :T10172  and push the :T40271/1  out of the chain sprocket splines in the direction of the -arrow B-. Release the camshaft in the direction of -arrow C-, until the timing chain touches the glide rail -1-. Hold the camshaft firmly in this position, install the tensioning rail -2- and tighten the bolt -3-.

GWWM15-10030Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the chain tensioner -1- and tighten the bolts -arrows-.

GWWA15-11492Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the chain tensioner -2-. The wire clip -arrow- must come in to contact with the oil pan upper section opening. Tighten the bolt -1- and remove the :T40011  .

GWWN15-10947Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the intake camshaft in the direction of the -arrow 1- using the :T40266  . Slide the : T40271/2  out of the chain sprocket splines in direction of -arrow 2- and release the camshaft.

GWWA15-11429Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the :T40271/1  and :T40271/2  .

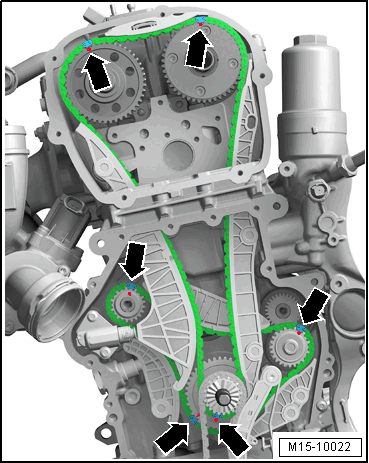

-- Check the adjustment. The painted chain links -arrows- must line up with the markings on the chain sprockets.

GWWM15-10022Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts -arrows- and tighten them. Tightening specification -item  ) OVERVIEW - CYLINDER HEAD-.

GWWA15-11390Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles Without Adapter Sleeve

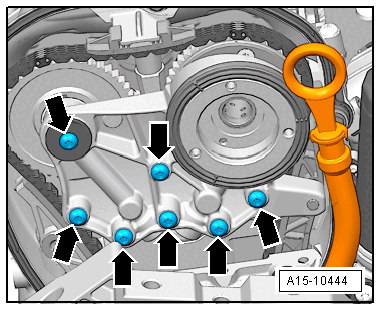

-- Mount the bearing bracket and the bolts -arrows- hand-tight.

GWWA15-10444Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With Adapter Sleeve

-- Coat the holes -arrows- with engine oil.

GWWA15-11798Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The adapter sleeve -1- is not present on every bearing bracket.

-- Attach the bearing mount. Do not tilt it when doing this. Tighten the bolts -1 to 6- hand-tight.

GWWA15-11797Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If an adapter sleeve is installed, this will be moved with the bolt -1- in the cylinder head.

Continuation For All Vehicles

-- Remove the :T40267  .

GWWA15-11392Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -arrows-. Refer to OVERVIEW - CAMSHAFT TIMING CHAINS .

GWWA15-10444Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the control valve -item  ) OVERVIEW - CAMSHAFT TIMING CHAINS-.

-- Turn the engine twice in the direction of engine rotation.

NOTE:

Due to the ratio, the painted chain links no longer match up after the engine has been turned.

-- Remove the turning over tool and install the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

GWWA15-11234Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Tighten the bolts -1 and 4- with an additional turn after installing the vibration damper. The bolts must be removed again to install the vibration damper.

-- Install the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

-- Install the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Install the ribbed belt tensioner. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

Further installation is performed in reverse order of removal, while noting the following:

-- After performing work on the chain drive the adaptation value in the engine control module must be adapted. To do so, turn on the ignition and select the following menu items on the Vehicle Diagnostic Tester:
