Differentiation Of Output Shafts
WARNING: This page is about a different variant/trim than selected.

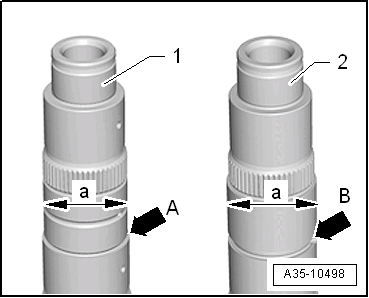

| Output Shaft | -1- with Reinforcement Measures | -1- without Reinforcement Measures |
|---|---|---|
| Dimension -a- | 40.1 mm | 42.0 mm |
| -Arrow A- | Groove for collar bushing position, refer to -item ) Collar Bushing-. | - |
| -Arrow B- | - | Two opposite holes and circular groove for the thrust washer mounts, refer to -item ) Thrust Washer-. |
