Installing The Locking Collar

WARNING: This page is about a different variant/trim than selected.

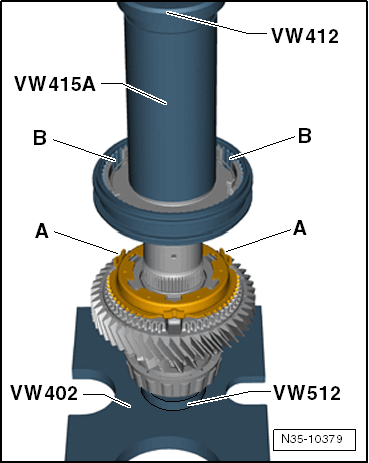

GWWN35-10379Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The pins -A- on the synchronizer ring lock into the recesses -B- in the synchronizer hub.

-- Install the locking ring.
