Installing Synchronizer Ring

WARNING: This page is about a different variant/trim than selected.

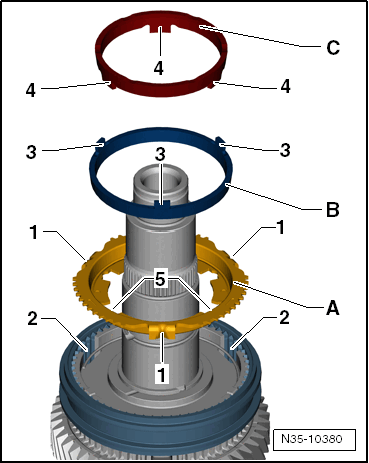

Fig 1: Exploded View Of Outer Ring Synchronizer Ring And 1st Gear Outer Race and Inner Race

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the synchronizer ring -A- into the 1st and 2nd gear synchronizer hub.

The tabs -1- lock in the openings -2- in the synchronizer hub.

-- Install the outer race -B- in the synchronizer ring.

The tabs -3- face away from the synchronizer ring.

-- Install the inner race -C- in the outer race.

The tabs -4- lock in the larger openings -5- in the synchronizer ring -A-.
