Installing Collar Bushing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Allocate transmission via code letters:

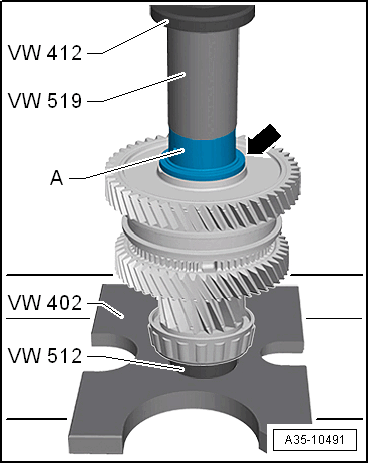

Installation position of the collar bushing -A- : The collar -arrow- points to the 1st gear wheel.

-- Then install the 4th gear wheel with needle bearing.
