Checking The Inner Contact Surface For Wear
WARNING: This page is about a different variant/trim than selected.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

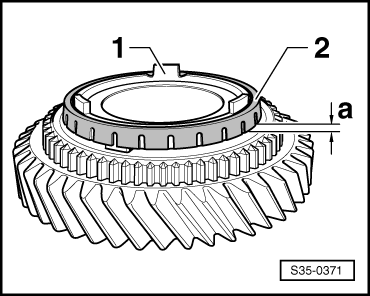

-- Install the inner race -1- on the cone on the gear wheel.
-- Install the outer race -2- on the cone on the inner race. Measure the gap -a- with a feeler gauge at 3 locations at 120°.
-- Note the average value.
| Wear Limit Dimension -a- |
- |
| 1st gear, 2nd gear, and 3rd gear |
0.4 mm |
