Engine Support, Removing And Installing: Removing

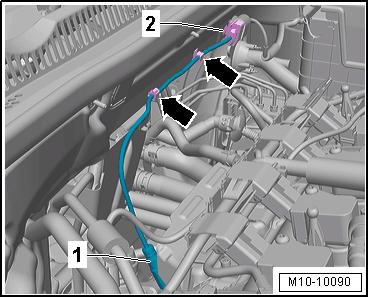

-- Disconnect the connector for the Oxygen Sensor 1 before Catalytic Converter -GX10- at the separating point -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the cable from the brackets -arrows-.

-- Remove the pendulum support. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .

-- Remove the engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Lift the engine using the :10-222A/11  -1- to dimension -a-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dimension -a- = approximately 50 mm.

-- Remove the bolts -1, 2 and 3- and engine support.

Fig 1: Engine Support Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
