Needle Bearing, Installing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the bearing seat in the crankshaft and apply a thin coat of grease.

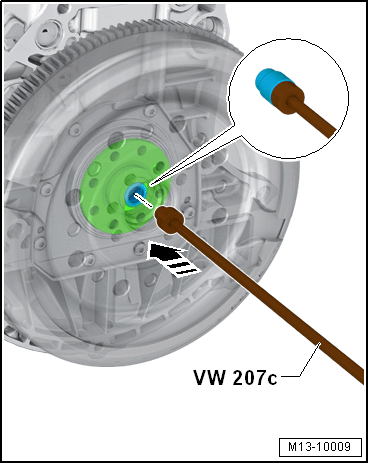

-- Drive the needle bearing into the crankshaft using the :VW207C .

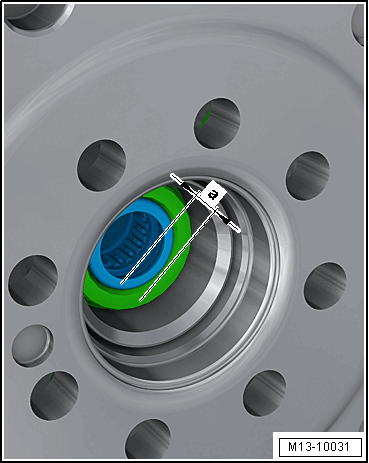

Installation Depth: Dimension -a- = 2.0 mm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If the needle bearing was unintentionally driven in too deeply, it must be replaced, because it will be damaged when it is removed again.
