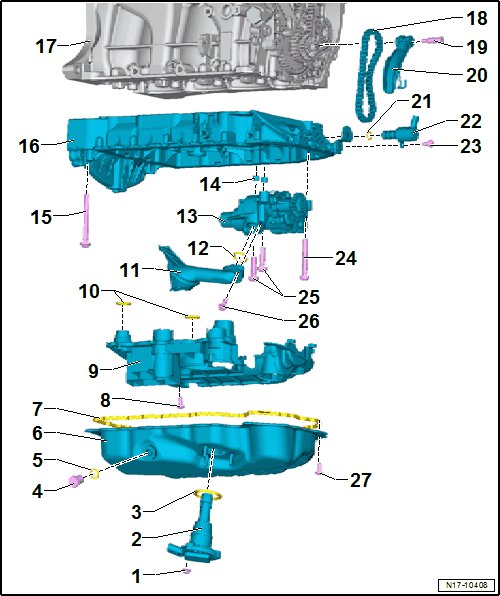

Overview - Oil Pan/Oil Pump
WARNING: This page is about a different variant/trim than selected.
NOTE:
If large quantities of metal shavings or other deposits such as those caused by partial seizure of the crankshaft or connecting rod damage are found in the engine oil, clean the oil channels thoroughly and replace the engine oil cooler to prevent further damage.
- Nut
- 9 Nm
- Oil Level Thermal Sensor -G266-
- Removing and installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
- O-ring
- Coat with engine oil
- Not available separately, part of Oil Level Thermal Sensor -G266-
- Replace Oil Level Thermal Sensor -G266- if O-ring is damaged.
- Oil Drain Plug/Plug
- Sheet metal oil pan: 30 Nm
- Plastic oil pan: turn all the way using a flat-head screwdriver or a coin
- Seal/O-ring
- Replace after removing
- Oil Pan Lower Section
- Removing and installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .
- Seal
- Not installed
- Bolt
- 4 Nm +45°
- Replace after removing
- For the oil baffle and oil intake pipe
- Oil Baffle
- Replace after removing
- O-ring
- Coat with engine oil
- Replace after removing
- Oil Intake Pipe
- Clean the strainer if it is dirty.
- O-ring
- Coat with engine oil
- Replace after removing
- Oil Pump
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
- Centering Bracket
- Bolt
- Tightening sequence. Refer to Fig 2
- Replace after removing
- Oil Pan Upper Section
- Tightening sequence. Refer to Fig 3
- Removing and installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
- Cylinder Block
- Oil Pump Drive Chain
- Mark direction of rotation before removing
- Bolt
- 9 Nm
- Chain Tensioner
- O-ring
- Replace after removing
- Coat with engine oil
- Oil Pressure Regulation Valve -N428-
- Removing and installing. Refer to Oil Pressure Regulation Valve -N428-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification: refer to -item ) Bolt-.
- Oil Pump Bolt
- 8 Nm +90°
- Replace after removing
- Oil Pump Bolt
- 8 Nm +90°
- Replace after removing
- Oil Intake Pipe Bolt
- 4 Nm +45°
- Replace after removing
- Oil Pan Bolt
- Replace after removing
- Tightening sequence. Refer to Fig 2
NOTE:
Replace the bolts that were tightened with an additional turn.
-- Tighten the bolts -1 through 20- in two stages in the sequence shown:
| Step | Tightening Sequence And Tightening Specification |
|---|---|
| 1. Bolts -1 through 20- | 8 Nm |
| 2. Bolts -1 through 20- | 45° additional turn |
NOTE:
Replace the bolts that were tightened with an additional turn.
-- Tighten the bolts -1 through 14- in the sequence shown:
| Step | Bolts | Tightening Sequence And Tightening Specification |
|---|---|---|
| 1. | -1 to 14- | 8 Nm |
| 2. | -1 and 2- | 180° additional turn |
| 3. | -3 to 9- | 45° additional turn |
| 4. | -10- | 180° additional turn |
| 5. | -11 to 14- | Turn an additional 90°. |
