Valve Stem Seals, Removing And Installing, Cylinder Head Installed: Procedure

WARNING: This page is about a different variant/trim than selected.

-- Remove the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .

-- Remove the spark plugs with the :3122B .

-- Remove the :T10340 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Set the piston for the respective cylinder to "bottom dead center (BDC)".

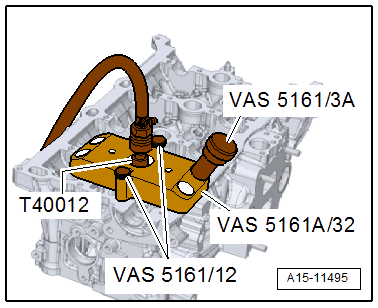

-- Position the :VAS5161/32-1 on the cylinder head and tighten using the :VAS5161/12 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the :T40012 with seal in the spark plug thread and tighten by hand.

-- Connect the adapter to the compressed air using a commercially available intermediate piece and give steady pressure.

-- Insert the :VAS5161/3A into the guide plate and loosen the stuck valve retainers with a plastic mallet.

-- Install the :VAS5161/6 with the :VAS5161/5 in the guide plate.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

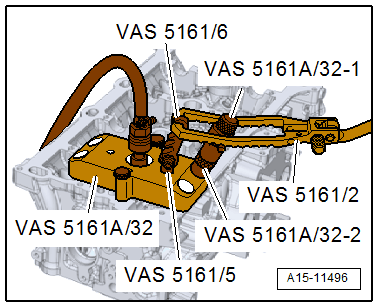

-- Insert the :VAS5161/32-2 with the :VAS5161A/32-3 installed into the guide plate.

-- Engage the :VAS5161/2 at the engaging device and press the installation cartridge downward.

-- At the same time, turn the installation cartridge knurled bolt right until points engage in the valve retainers.

-- Move the knurled bolt left and right slightly. This presses the valve retainers apart and captures them in the assembly cartridge.

-- Release the pressure fork.

-- Remove the assembly cartridge.

-- Remove the guide plate and turn it aside.

-- Remove the valve spring and the valve spring retainer.

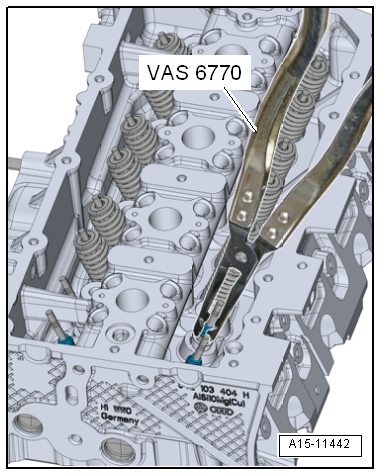

-- Remove the valve stem seal using the :VAS6770 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

There is a risk of damage when installing valve stem seals.

-- Lightly lubricate the valve stem seal sealing lip -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

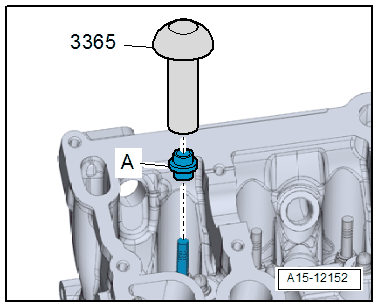

-- Carefully press the valve stem seal -A- onto the valve guide with the :3365 .

If the valve retainers were removed from the installation cartridge, they must be inserted in the valve insertion device next.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the cartridge from above onto the insertion device and valve retainers.

-- Install the valve spring and valve spring retainer, valve spring installed position. Refer to Installed Position Of Valve Spring .

-- Fasten the :VAS5161/32-1 to the cylinder head again.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :VAS5161/32-2 with the :VAS5161A/32-3 into the guide plate.

-- Press the pressure fork down and pull the knurled bolt up while turning left and right. This inserts the valve retainers.

-- Release the pressure fork with the knurled bolt still raised.

-- Repeat the procedure on each valve.

Assembling

Assemble in the reverse order of removal. Note the following:

-- Install the spark plugs.

-- Install the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
