Exhaust Camshaft Seal, Removing And Installing, Transmission Side, Version 2: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT SPROCKET, REMOVING AND INSTALLING .
NOTE:
Risk of chemical damage to the coolant pump seal from oil entry between the coolant pump and the cylinder head.
-- Cover the coolant pump with a cloth.

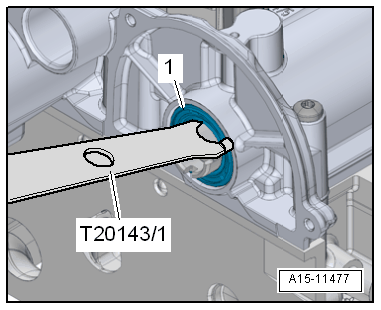

-- Insert the :T20143/1 carefully between the camshaft and seal -1-.
-- Remove the seal.
