Exhaust Camshaft Seal, Removing And Installing, Transmission Side, Version 2: Installing
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not coat the new seal with oil.

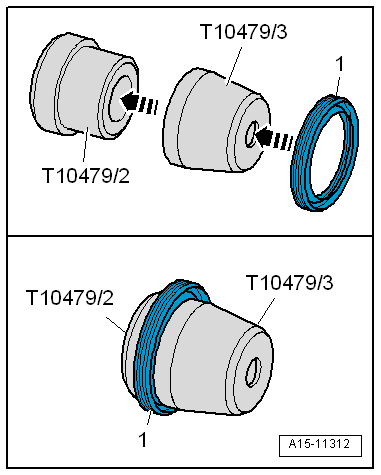

-- Slide the seal -1- over the :T10479/3 onto the :T10479/2 .
- Installed position: the closed side of the seal faces the seal installer.
-- Separate the fitting sleeve and guide sleeve.

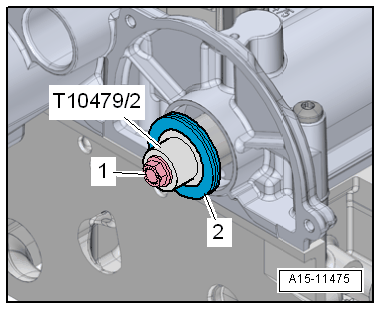

-- Position the :T10479/2 with the seal -2- in the center on the camshaft.
-- Secure the guide sleeve to the camshaft with the coolant pump drive wheel bolt -1-.
-- Push the seal onto the camshaft and remove the guide sleeve.

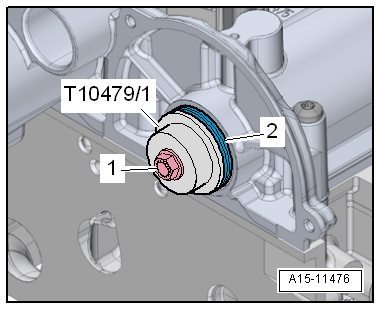

-- Install the seal -2- with the :T10479/1 and the bolt -1- for the coolant pump drive wheel all the way.
-- Install the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT SPROCKET, REMOVING AND INSTALLING .
