Exhaust Camshaft Seal, Removing And Installing, Transmission Side, Version 1: Installing
WARNING: This page is about a different variant/trim than selected.

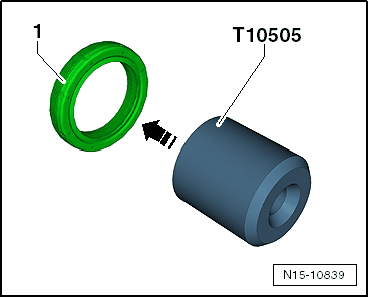

-- Slide the :T10505 into the seal -1- in the direction of -arrow-.
NOTE:
Do not coat the new seal with oil.
- Installed position: the closed side of the seal faces the thrust piece.

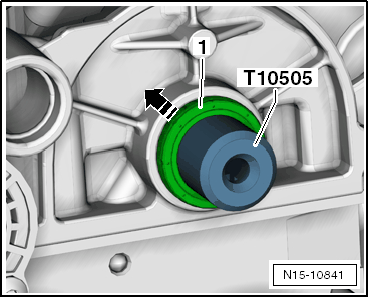

-- Mount the :T10505 together with the seal on the exhaust camshaft -1-.

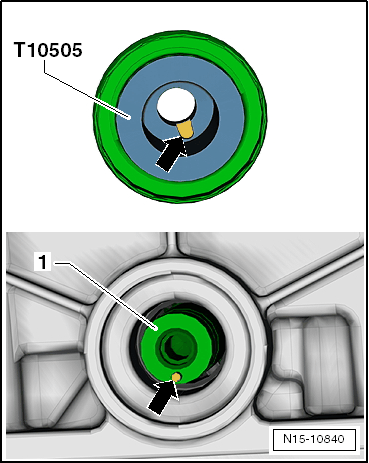

-- The pin -bottom arrow- on the camshaft must fit into the opening -top arrow- in the thrust piece.
-- Push the seal onto the camshaft housing -1- in direction of -arrow-.

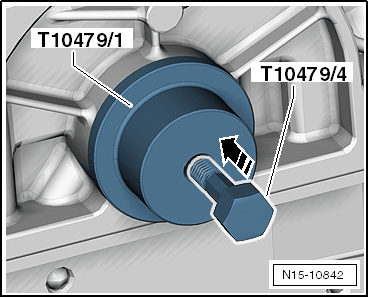

-- Install the seal using the :T10479/1 and the :T10479/4 until it stops.
-- Install the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT SPROCKET, REMOVING AND INSTALLING .
