Camshaft Seal For Intake Camshaft, Removing And Installing, Belt Pulley Side: Removing

-- Remove the toothed belt from the camshafts. Refer to TOOTHED BELT, REMOVING FROM CAMSHAFTS .

-- Remove the bolt -1- and remove the camshaft sprocket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

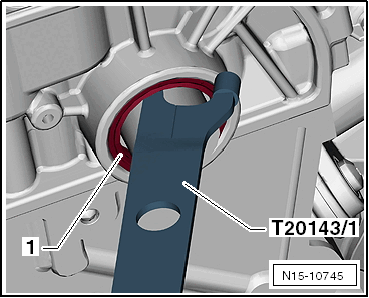

-- Remove the seal -1- using the :T20143/1  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
