Camshaft Seal For Intake Camshaft, Removing And Installing, Belt Pulley Side: Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Do not coat the new seal with oil.

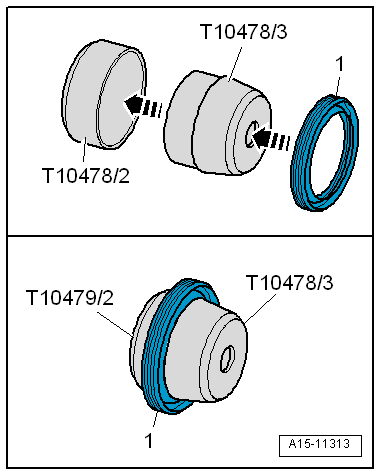

-- Slide the seal -1- over the :T10478/3 onto the :T10478/2 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the fitting sleeve and guide sleeve.

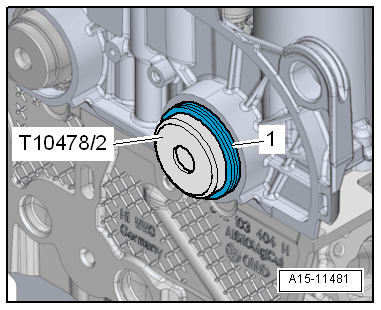

-- Mount the :T10478/2 with the seal -1- on the camshaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

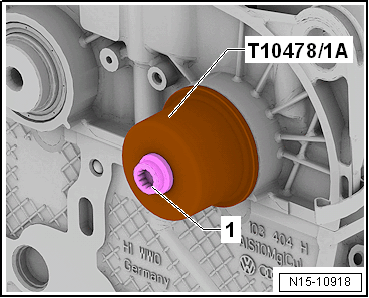

-- Install the seal with the seal installer - camshaft - thrust piece :T10478/1A and the bolt -1- for the camshaft sprocket all the way.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the toothed belt (adjust valve timing). Refer to TOOTHED BELT, REMOVING FROM CAMSHAFTS .
