Camshaft Seal For Exhaust Camshaft On Belt Pulley Side, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the toothed belt from the camshafts. Refer to TOOTHED BELT, REMOVING FROM CAMSHAFTS .

-- Remove the bolt -2- and the camshaft sprocket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

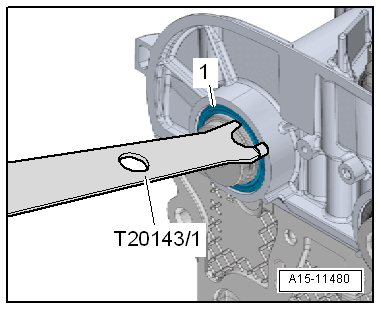

-- Remove the seal -1- using the :T20143/1 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
