Camshaft Seal For Exhaust Camshaft On Belt Pulley Side, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Do not coat the new seal with oil.

-- Slide the seal -1- over the :T10478/3 onto the :T10478/2 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the fitting sleeve and guide sleeve.

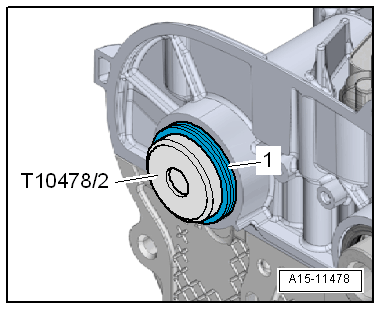

-- Position the :T10478/2 with the seal -1- on the camshaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

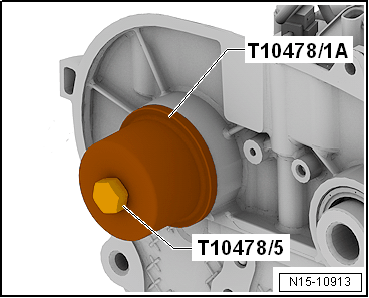

-- Install the :T10478/1A with the Hexagon Bolt M10x1.25x46 :T10478/5 until it stops.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the toothed belt (adjust valve timing). Refer to TOOTHED BELT, REMOVING FROM CAMSHAFTS .
