Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

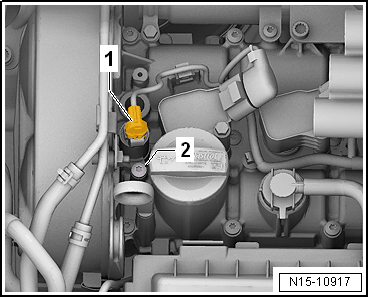

-- Disconnect the connector -1-.

GWWN15-10917Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and the Camshaft Adjustment Valve 1 -N205-.
