Lower Toothed Belt Guard, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

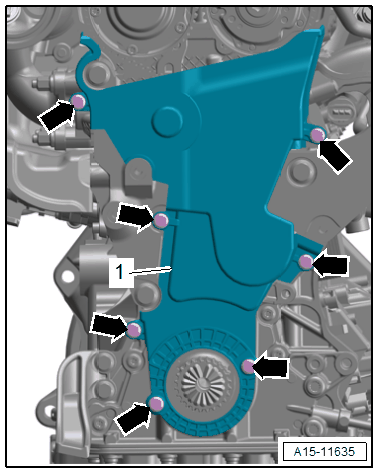

-- Remove the bolts -arrows-.

GWWA15-11635Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower toothed belt guard.
