Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

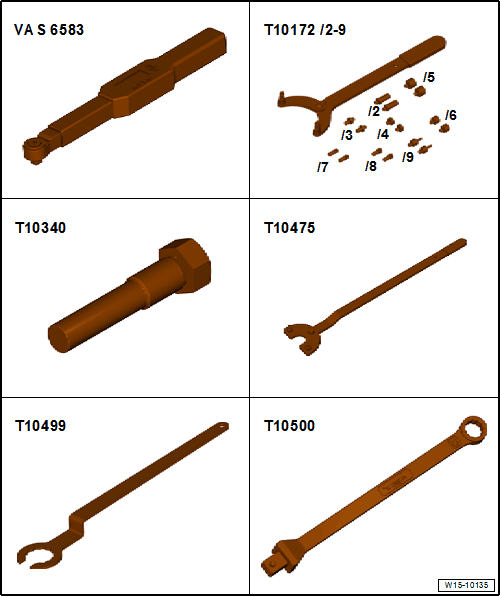

Special Tools And Workshop Equipment Required

• Electronic Torque Wrench 3-60Nm :VAS6583
• Counterhold - Multiple Use :T10172A
• Crankshaft Locking Pin :T10340
• Counterhold - Pulley :T10475
• Wrench - Open Ring - 30mm :T10499
• Insert Tool - 13mm :T10500

Special Tools And Workshop Equipment Required

• Crankshaft Locking Pin :T10340

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Socket T30 :T10405

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

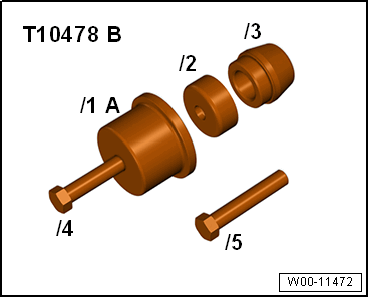

• Seal Installer - Camshaft :T10478B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

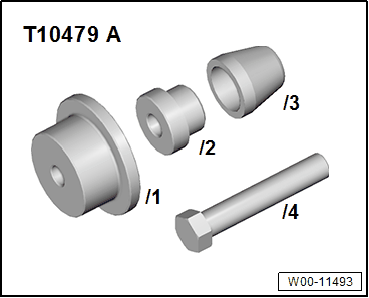

• Seal Installer - Camshaft :T10479A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Assembly Tool :T10487

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Camshaft Lock :T10494

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Intake Manifold Release Tool :T10527  and :T10527/1

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

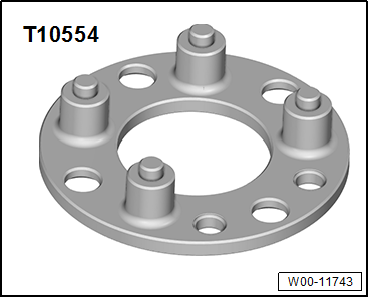

• Counterhold :T10554

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Valve Cotter Tool Kit - Adapter :T40012

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Compression Tester Kit :VAG1763

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Valve Cotter Tool Kit :VAS5161  with the Valve Cotter Tool Kit - Guide Plate 32 :VAS5161A/32

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dial Gauge - 0-10mm :VAS6079

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine And Transmission Holder :VAS6095

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine Bung Set :VAS6122

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Cylinder Head Tensioning Device :VAS6419

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Electronic Torque Wrench 3-60Nm :VAS6583

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

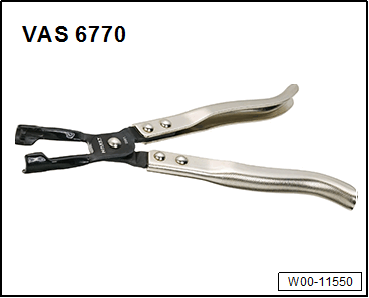

• Pliers - Valve Seal :VAS6770

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dial Gauge Holder :VW387

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Spark Plug Removal Tool :3122B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Valve Stem :3365

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
