Overview - Camshaft Housing: Notes

WARNING: This page is about a different variant/trim than selected.

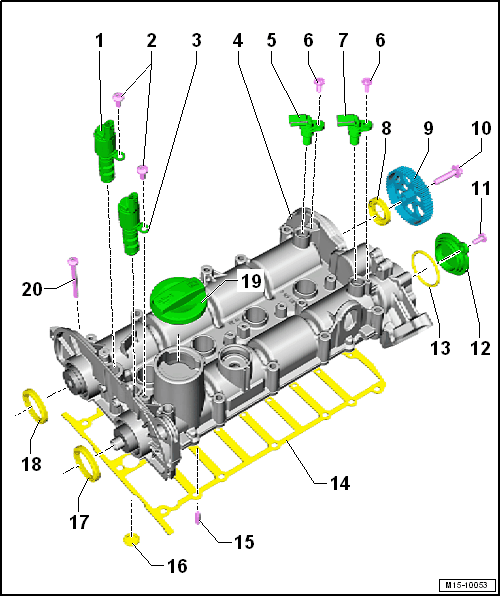

Fig 1: Exploded View Of Camshaft Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Exhaust Camshaft Adjustment Valve 1 -N318-
- Removing and installing. Refer to Exhaust Camshaft Adjustment Valve 1 -N318-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Camshaft Adjustment Valve 1 -N205-
- Removing and installing. Refer to Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING .
Camshaft Housing
- Removing and installing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
Camshaft Position Sensor 3 -G300-
- Removing and installing. Refer to Camshaft Position Sensor 3 -G300-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Camshaft Position Sensor -G40-
- Removing and installing. Refer to Camshaft Position Sensor -G40-, REMOVING AND INSTALLING .
Seal
- Replace after removing. Refer to CAMSHAFT SEAL, REMOVING AND INSTALLING .
- For the exhaust camshaft on the transmission side
Toothed Belt Sprocket
- For the coolant pump
- Removing and installing. Refer to COOLANT PUMP TOOTHED BELT SPROCKET, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - COOLANT PUMP/COOLANT THERMOSTAT
Bolt
- 8 Nm
Cap
Seal
- Replace after removing.
Seal
- Replace after removing.
Alignment Pin
Seal
- With oil strainer
- The oil screen may only be installed if the cylinder head has the corresponding recess for it.
- Cylinder heads without a recess do not require an oil screen.
- Installed in the cylinder head
Seal
- Replace after removing. Refer to CAMSHAFT SEAL FOR INTAKE CAMSHAFT, REMOVING AND INSTALLING, BELT PULLEY SIDE .
- For the belt pulley side intake camshaft
Seal
- Replace after removing. Refer to CAMSHAFT SEAL FOR EXHAUST CAMSHAFT ON BELT PULLEY SIDE, REMOVING AND INSTALLING .
- For the belt pulley side exhaust camshaft
Cap
Bolt
- Tightening specification and sequence. Refer to Figure.
- Different lengths installed
