SUBFRAME Mount, Adjusting, Engine Mount: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal and note the following:

-- Install all the engine mount bolts completely by hand.

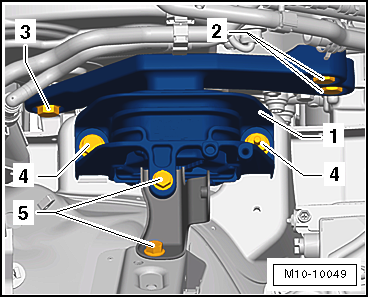

-- Tighten the bolts -2 and 3-. The bolt -3- is accessible through the right wheel housing.

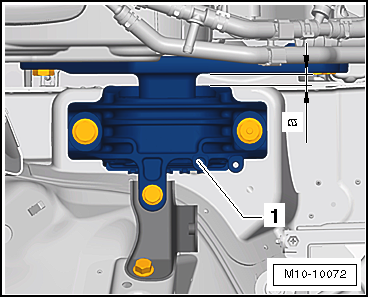

-- Align the engine mount -1- so that the distance -a- is the same.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -5-.

-- Remove the :10-222A  from the engine.

• Replace the bolts that were tightened with an additional turn.
