Oil Spray Jets, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the oil pan upper section and remove the oil baffle. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .

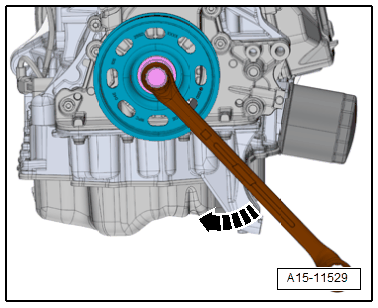

-- Turn the crankshaft on the vibration damper in the direction of engine rotation -arrow-, until the respective bolt is reachable.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

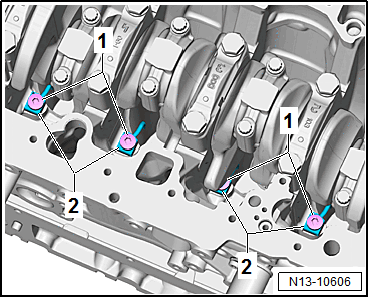

-- Remove the pressure relief valve -1- using the :T10545 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the oil spray jet -2-.
