Vibration Damper, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Position the engine in the "TDC position for cylinder 1". Refer to Crankshaft at "TDC", Positioning

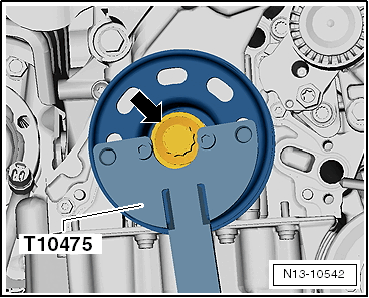

-- Loosen the bolt -arrow- for the vibration damper by using the :T10475 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt and the vibration damper.

CAUTION:

- Do not turn the crankshaft out of TDC.
