Sealing Flange, Removing And Installing, Belt Pulley Side: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the A/C compressor from the bracket and tie it up. Refer to A/C COMPRESSOR .

-- Remove the toothed belt. Refer to TOOTHED BELT, REMOVING AND INSTALLING .

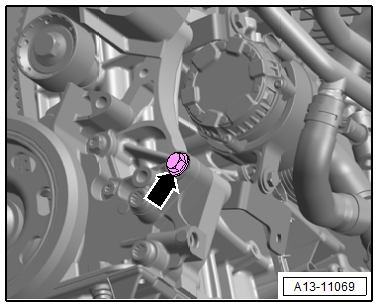

-- Remove the bolt -arrow- on the bracket for the Low Temperature Circuit Coolant Pump -V468-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

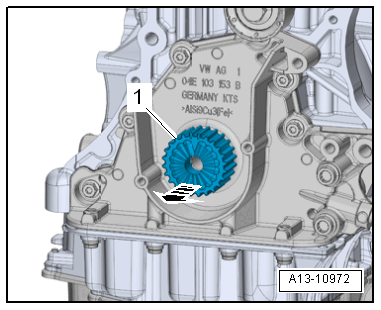

-- Remove the crankshaft toothed belt sprocket -1- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

- Do not turn the crankshaft out of TDC.

-- Remove the bolts -1 through 12- and carefully loosen the sealing flange from the bonding.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the shaft seal when the sealing flange is removed.
