Tightening Specifications For Hole In The Rear Cylinder Block

WARNING: This page is about a different variant/trim than selected.

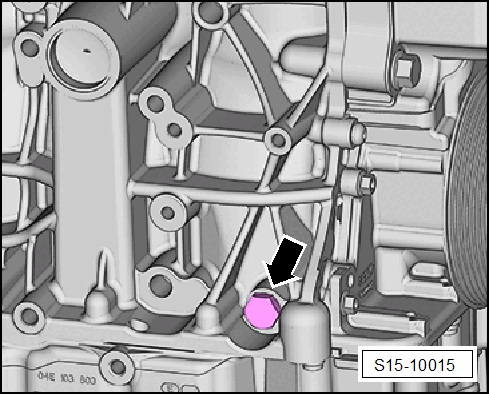

GWWS15-10015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Plug with integrated seal -arrow-.

Replace if damaged.

Component Tightening Specification
Bolt -arrow- 30 Nm
