Tightening Specifications With Sequence: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
Replace the bolts that were tightened with an additional turn.

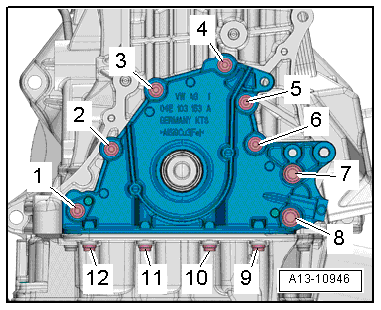

-- Tighten the bolts in steps:
| Step | Component | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | Bolts -1 to 12- | Install by hand all the way |
| 2 | Bolts -1 to 12- | Diagonally to 8 Nm |
| 3 | Bolts -7 and 8- | 20 Nm |
| 4 | Bolts -1 to 12- | in a diagonal sequence 90° additional turn |
