Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .

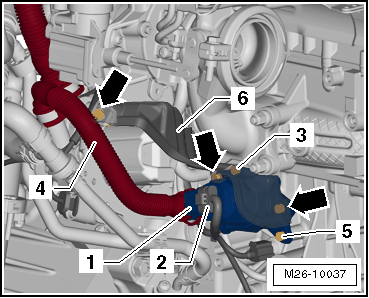

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Squeeze the locking ring on both side and remove the connecting pipe -4-.

-- Remove the three bolts -arrows- and heat shield.

-- Remove the bolts -3 and 5- and secondary air injection solenoid valve.
