Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Disconnect the connector -2-.

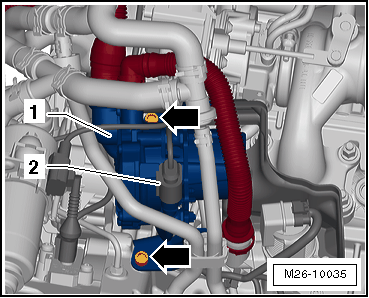

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt from the heat shield on the secondary air injection pump -1-.

-- Remove the -red- connecting pipes from the secondary air injection pump -1-. To do so, push the locking ring together on both sides.

-- Remove both bolts -arrows- and remove the secondary air injection pump downward.
