Overview - Secondary Air System

WARNING: This page is about a different variant/trim than selected.

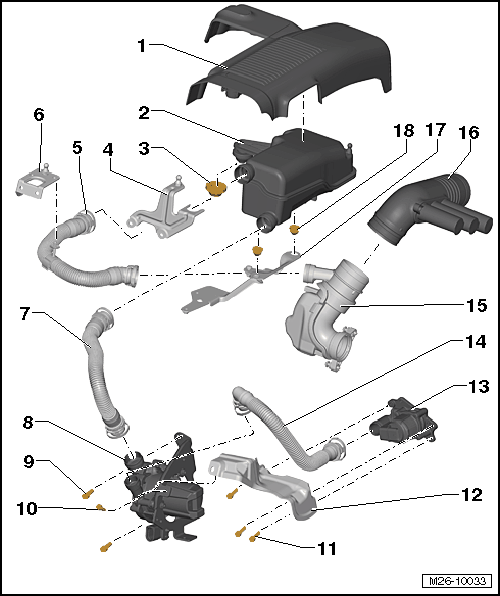

Fig 1: Exploded View Of Secondary Air Injection System
GWWM26-10033Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Cover
  2. Shock Absorber
    • The additional air volume prevents sounds and vibrations during the cold start phase
  3. Rubber Bushing
  4. Bracket
    • At front on the Electric Drive Power and Control Electronics -JX1- bracket
  5. Connecting Line
    • From the intake manifold on the shock absorber
  6. Bracket
    • On the body in the rear
  7. Connecting Line
    • From the secondary air injection pump motor to the damper
  8. Secondary Air Injection Pump Motor
  9. Bolt
    • 10 Nm
  10. Bolt
    • 5 Nm
    • Heat shield to engine
  11. Bolt
    • 8 Nm
    • Secondary air injection solenoid valve fastener to engine
    • Quantity: 4
  12. Heat Shield
  13. Secondary Air Injection Solenoid Valve
  14. Connecting Line
    • From the secondary air injection solenoid valve to the secondary air injection pump motor
  15. Intake Manifold
  16. Connecting Pipe
