Rear Muffler, Removing And Installing: Procedure

WARNING: This page is about a different variant/trim than selected.

-- Disconnect the exhaust pipe at the separating point -arrow 2- with the :VAS6254 or :VAS6780 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the clamping sleeve -4- centrally at the edge markings -1 and 3- when installing.

-- Install the clamping sleeve so that bolt end does not project beyond the lower edge of the clamping sleeve -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the rear muffler without tension. Refer to the figure below.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

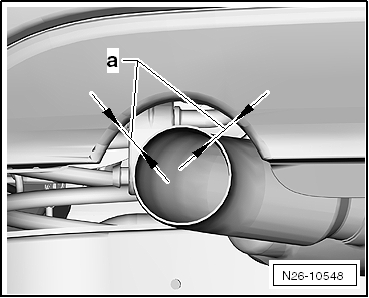

-- Align the tail pipe so that the dimensions -a- are equal.

Clamping sleeve installation position and tightening specification. Refer to CLAMPING SLEEVE INSTALLATION POSITION .
