Exhaust Gas Temperature Sensor 1 -G235-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
-- During installation, all cable ties must be installed at the same location.
NOTE:
Protect the exhaust gas temperature sensor against knocks and impacts. A dropped exhaust gas temperature sensor may not be used again.
Coat the threads with hot bolt paste.

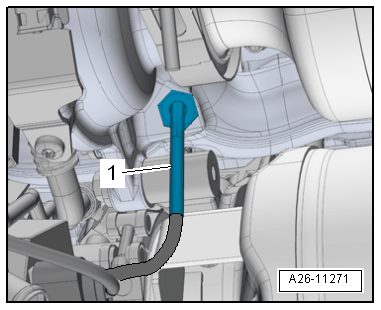

Exhaust Gas Temperature Sensor 1 -G235- installation position:
- The angled shaft -1- goes downward vertically.
-- Note the electrical connections and routing. Refer to RELAY CARRIERS, FUSE PANELS AND E-BOXES and the appropriate WIRING DIAGRAM.
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
