Exhaust Pipes/Mufflers, Disconnecting: Procedure

WARNING: This page is about a different variant/trim than selected.

-- Cut the rear muffler on the marking -arrow 2- at a right angle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

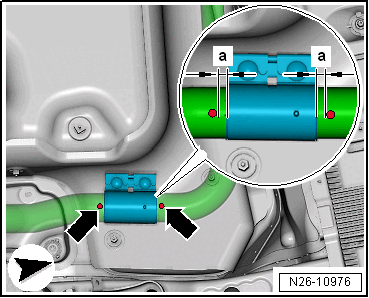

-- When installing, position the clamping sleeve in the center with the same distance -dimension a- to the side markings -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The distance -a- is approximately 5 mm.

-- Install the rear clamping sleeve.

-- Pay attention to the clamping sleeve installation position. Refer to CLAMPING SLEEVE INSTALLATION POSITION .

-- Install the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
