Overview - Exhaust Gas RECIRCULATION
WARNING: This page is about a different variant/trim than selected.

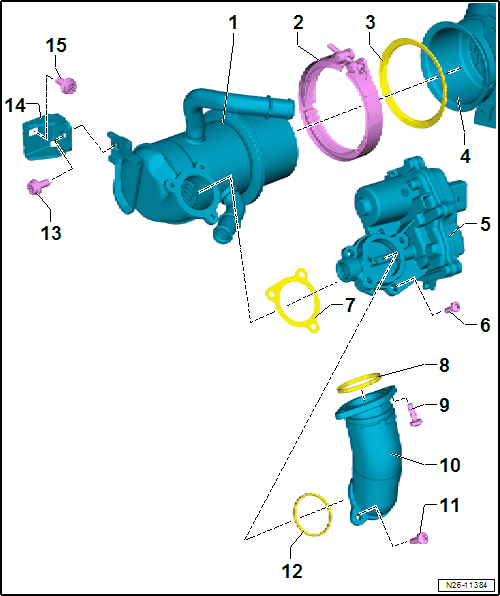

- EGR Cooler
- Removing and installing. Refer to EGR COOLER, REMOVING AND INSTALLING .
- Checking for leaks. Refer to EGR COOLER, CHECKING FOR LEAKS .
- Screw-Type Clamp
- Tightening specification and sequence. Refer to Fig 3.
- Replace after removing.
- Seal
- Replace after removing.
- Emissions Control Module
- Overview. Refer to OVERVIEW - EMISSIONS CONTROL SYSTEM .
- Removing and installing. Refer to EMISSIONS CONTROL MODULE, REMOVING AND INSTALLING .
- EGR Valve 2 -GX6-
- With EGR Motor 2 -V339-
- With Exhaust Gas Recirculation Position Sensor 2 -G466-
- Removing and installing. Refer to EGR Valve 2 -GX6-, REMOVING AND INSTALLING [CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA] .
- Bolt
- 9 Nm
- Seal
- Replace after removing.
- O-ring
- Replace after removing.
- Bolt
- 9 Nm
- Connecting Pipe
- Between the turbocharger and EGR cooler

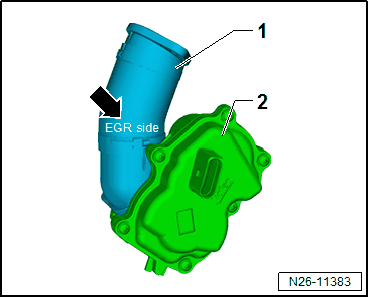

- Installation position. Refer to Fig 2.
- Bolt
- 9 Nm
- O-ring
- Replace after removing.
- Bolt
- Tightening specification and sequence (refer to Fig 3), if only the exhaust gas recirculation cooler is removed
- Bracket
- For the EGR cooler
- Bolt
- Tightening specification and sequence (refer to Fig 3), if only the exhaust gas recirculation cooler is removed
- Connecting Pipe
- EGR Valve 2 -GX6- on EGR Cooler
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | Screw-type clamp -3- | Position above the sealing flange and install the bolt. |
| 2. | Bolts -1 and 2-. | Positioning and installing |
| 3. | Screw-type clamp -3- | At the same time, do not let the clamp contact any component in the installation position. |
| 4. | Screw-type clamp -3- | Tighten the bolt to 7 Nm. |
| 5. | Bolts -1 and 2-. | Install by hand all the way |
| 6. | Bolts -1 and 2-. | 20 Nm |
