OVERVIEW - EGR Valve 1 -GX5-

WARNING: This page is about a different variant/trim than selected.

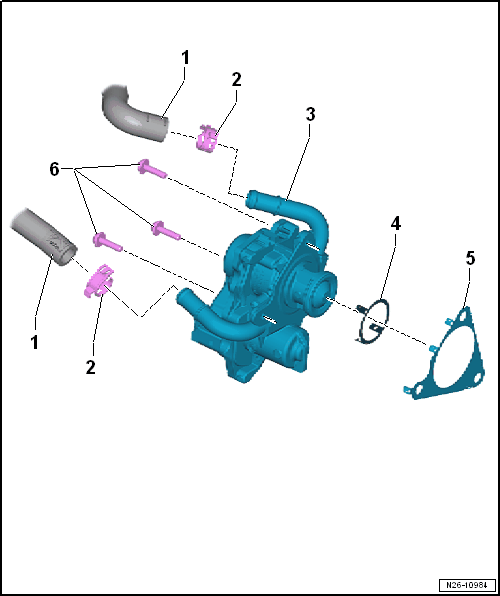

Fig 1: Exploded View Of EGR Valve Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Hoses
Spring Clamp
EGR Valve 1 -GX5-
- With the EGR Potentiometer -G212-
- With EGR Motor -V338-
- Removing and installing. Refer to EGR Valve 1 -GX5-, REMOVING AND INSTALLING .
Seal
- Replace after removing.
Seal
- Replace after removing.
Bolt
- 9 Nm
