Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the battery tray. Refer to BATTERY .

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

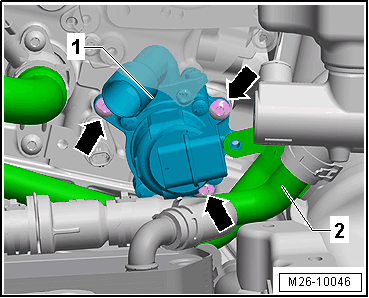

-- Squeeze the locking ring on both sides to remove the connecting pipe -1-.

-- Remove the bolts -arrows-.

-- Push the coolant pipe -2- gently aside.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and the Secondary Air Injection Solenoid Valve -N112-.
