Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Press the release -arrows- and remove the lines -1- from the Secondary Air Injection Pump Motor -V101- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

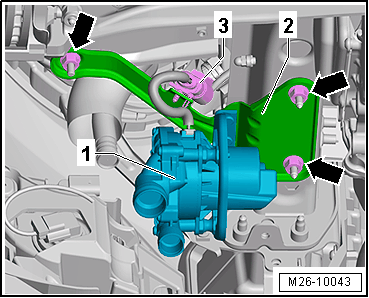

-- Remove the nuts -arrows- and the Secondary Air Injection Pump Motor -V101- -1- with the bracket -2-.

-- Remove the -red- connecting pipes from the secondary air injection pump -1-. To do so, push the locking ring together on both sides.

-- Remove both nuts -arrows- and remove the secondary air injection pump downward.
