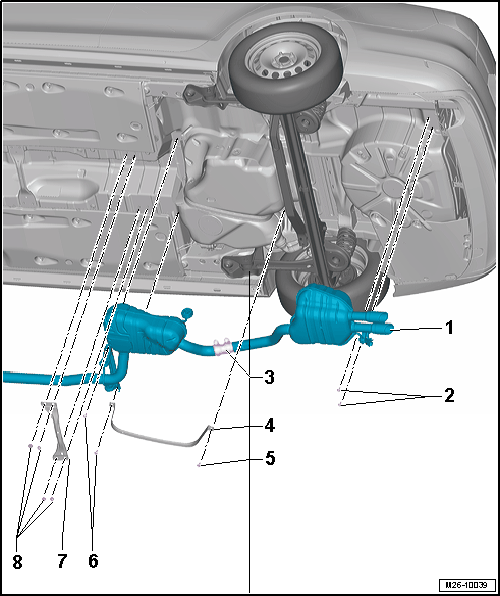

Overview - Muffler
WARNING: This page is about a different variant/trim than selected.
- Exhaust Pipe with Rear Muffler
- Removing and installing. Refer to REAR MUFFLER, REMOVING AND INSTALLING .
- Note the installation position
- Bolt
- 25 Nm
- Replace after removing
- Separating Point
- Center
- Identified on exhaust pipe by an impression
- Cut the exhaust pipe at a right angle at the separating point using the :VAG1523A or : VAS6254 . Refer to REAR MUFFLER, REMOVING AND INSTALLING .
- Mounting Strap
- Fuel tank to body
- Bolt
- Rear tensioning strap to body
- Refer to FUEL TANK .
- Bolt
- Front tensioning strap to body
- Center muffler bracket to body
- Refer to FUEL TANK .
- Rear Tunnel Brace
- Removing and installing. Refer to UNDERBODY TRIM PANEL .
- Nut
- 20 Nm
- Rear Tunnel Brace
